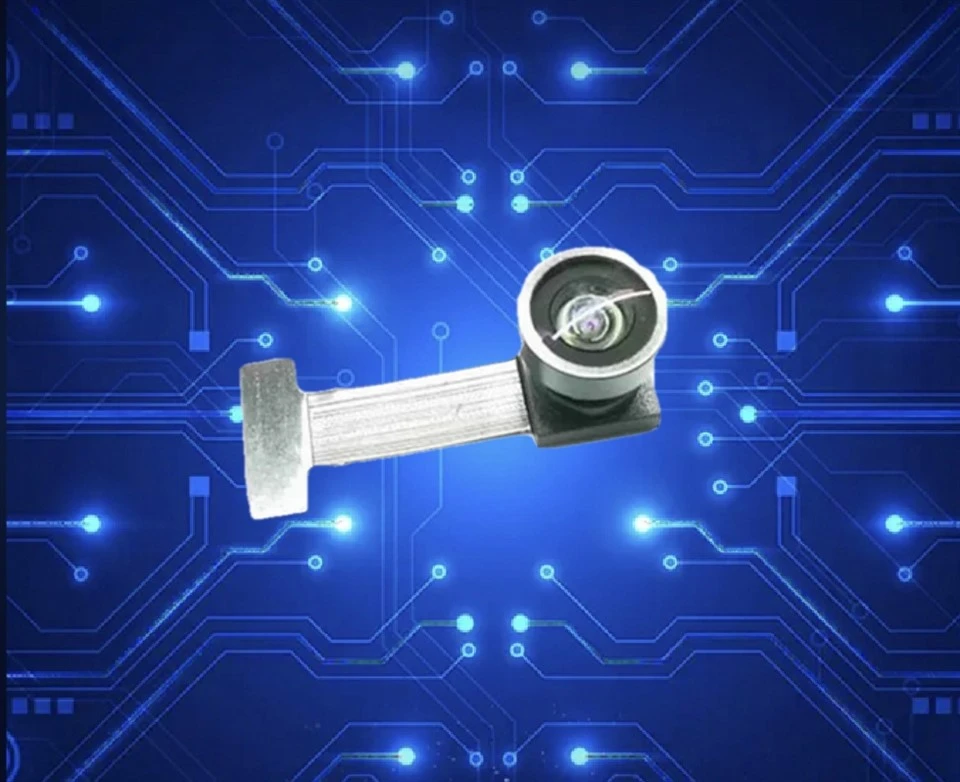

Esp32 Infrared Camera

Pixel Size; 1.4 um x 1.4 um
Optical size of 1/5"
Support For Output Formats; RAW RGBRGB565/555/444,CCIR656,YCbCr422,and compression.
Maximum Image Transfer Rate;
2048x1536; 15 fps 、1080p; 20 fps720p; 45 fpsXGA (1024x768); 45 fpsVGA (640x480); 60 fpsQVGA (320x240); 120 fps.
Sensitivity; 670 mV/Lux-sec
Output Formats; 8-/10-bit RAW, RGB and YCbCroutput, compression

Send Inquiry

Download

Description

Technical Parameters

Product Introduction

Esp32 Infrared Camera module is a 3-megapixel 940 Infrared camera module designed for the ESP32 development board. It is highly suitable for beginner-level AI vision and wireless monitoring. It is small in size and has low power consumption.The OV3660 features 1.4 um x 1.4 um pixels, combined with an infrared filter and a 940 infrared illuminator. It can capture clear black-and-white images even in complete darkness, making it more suitable for night monitoring than ordinary cameras.ODM and OEM services are available.

Product Details

Esp32 Infrared Camera is suitable for with a 2.8 V/1.8 V/1.5 V power supply. with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, and improved quantum efficiency).

● Pixel Size: 1.4 um x 1.4 um.

● Optical size of 1/5".

● Support For Output Formats: RAW RGBRGB565/555/444,CCIR656,YCbCr422,and compression.

● Maximum Image Transfer Rate:

● 2048x1536: 15 fps ,1080p: 20 fps720p:45 fpsXGA (1024x768):45 fpsVGA (640x480): 60 fpsQVGA (320x240): 120 fps.

● Sensitivity: 670 mV/Lux-sec.

● Output Formats: 8-/10-bit RAW, RGB and YCbCroutput, compression.

● Operating: -20°C to 71°C junction temperature.

● Stable Image: 0°C to 51°C junction temperature.

● Power Requirements:active: 98 mAstandby: 20 uA.

● Input Clock Frequency: 6~27 MHz.

Esp32 Infrared Camera Lens: Customizable for various scenarios.Autofocus/Fixed-focus optional. Supports OEM/ODM.
