Raspberry Pi Global Shutter Camera 5/4B/3B+ Black and White 720P OV9281 120FPS
Optical size of 1/4"
Output Formats: 10-bit RAW
Power Requirements: active: 134 mW standby:65 uA XSHUTDOWN: 50 uA.
Temperature Range: operating: operating: -30°C to +85°C junction temperature.
Stable Image: 0°C to 50°C junction temperature.
Minimum Exposure Time: 1 row period
Description
Technical Parameters

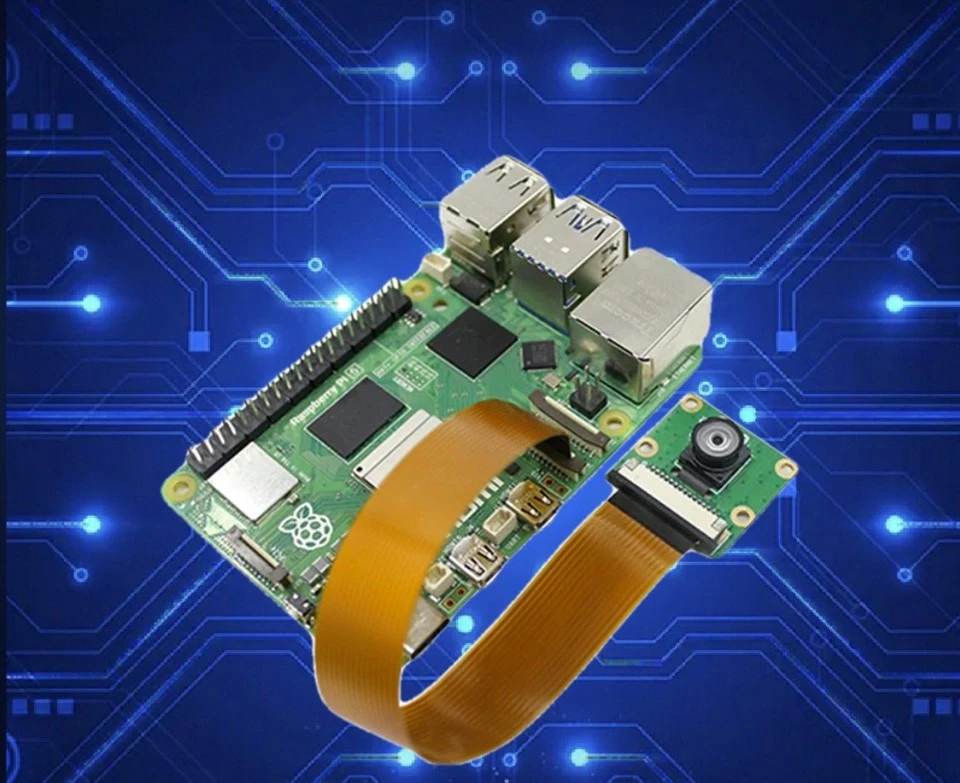

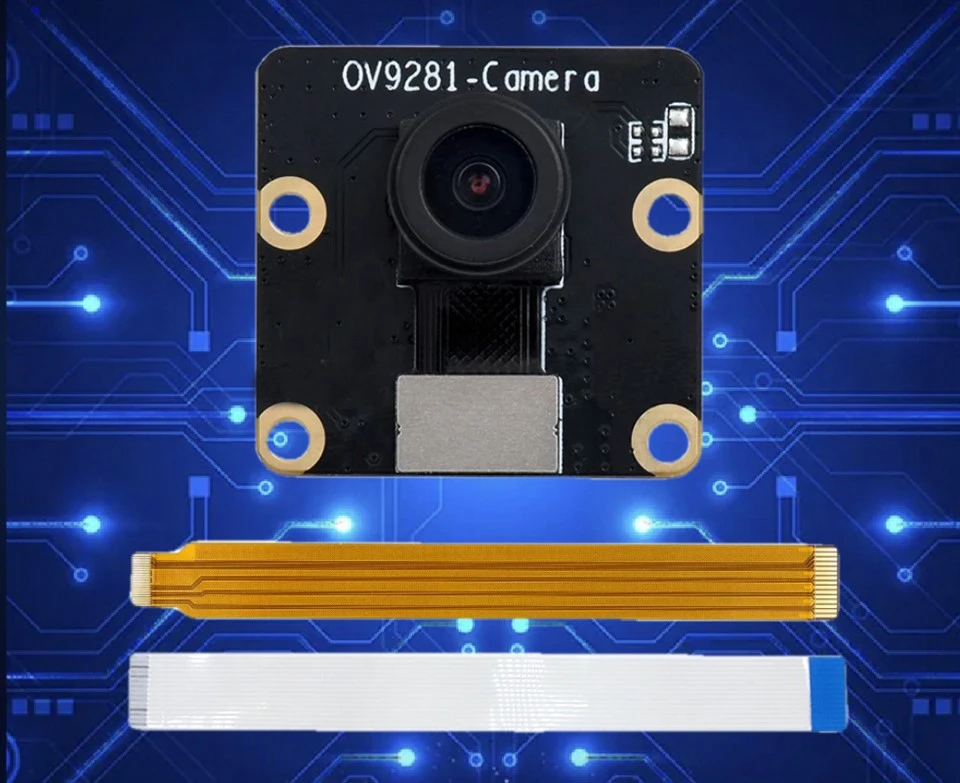

Raspberry Pi Global Shutter Camera 5/4B/3B+ black and white 720P OV9281 120FPS it is a 720P camera module specifically designed for Raspberry Pi development boards. OV9281 It is a 1/4-inch black-and-white CMOS image sensor with a resolution of 1280x800 (1 million pixels). It adopts a 3umx3um pixel design and global shutter technology, supports pixel synchronous exposure, effectively eliminating image distortion caused by high-speed moving objects. Its large pixel structure optimizes noise control in low-light environments, and is suitable for imaging in low-light scenarios.Offer ODM and OEM services.







Product Details
Raspberry Pi Global Shutter Camera 5/4B/3B+ black and white 720P OV9281 120FPS number of active pixels 1280(H) x 800 (V) approx. 1M pixels
● Pixel Size: 3.0 um x 3.0um.
● Optical size of 1/4".
● Output Formats: 10-bit RAW.
● Power Requirements: active: 134 mW standby:65 uA XSHUTDOWN: 50 uA.
● Temperature Range: operating: operating: -30°C to +85°C junction temperature.
● Stable Image: 0°C to 50°C junction temperature.
● Minimum Exposure Time: 1 row period.
● Maximum Exposure Time: frame length - 12 rowperiods, where frame length is set by registers{0x380E,0x380F}.

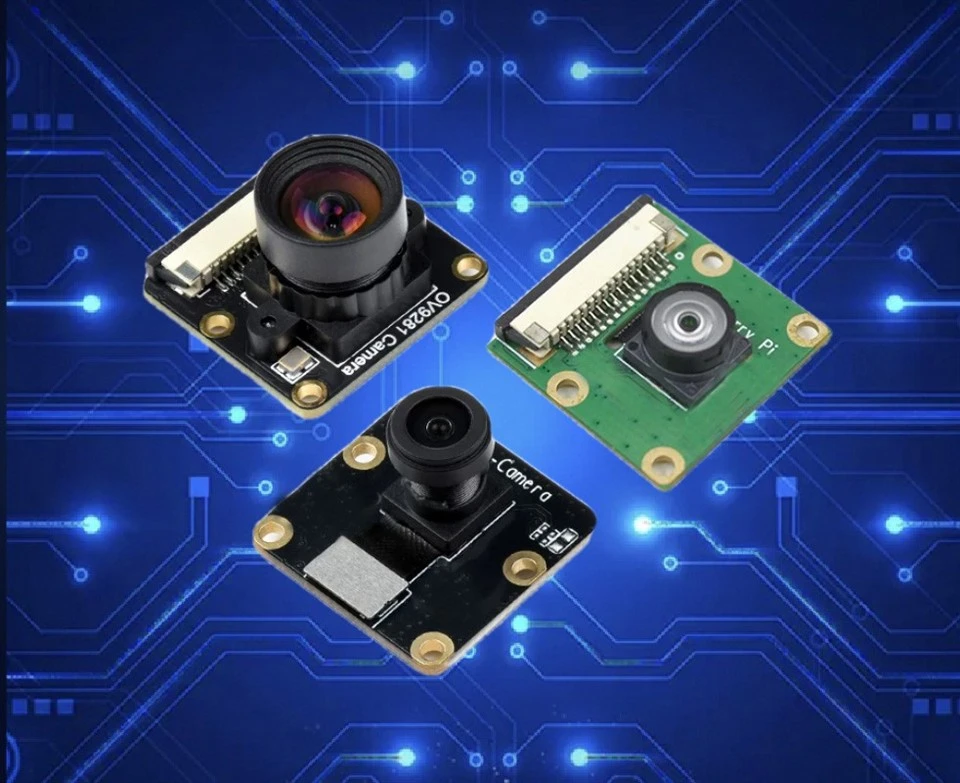

Raspberry Pi Global Shutter Camera 5/4B/3B+ black and white 720P OV9281 120FPS Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional.Supports OEM/ODM.
