Raspberry Pi Global Shutter Camera 5/4B/3B+ 1080P IMX296

Product Introduction

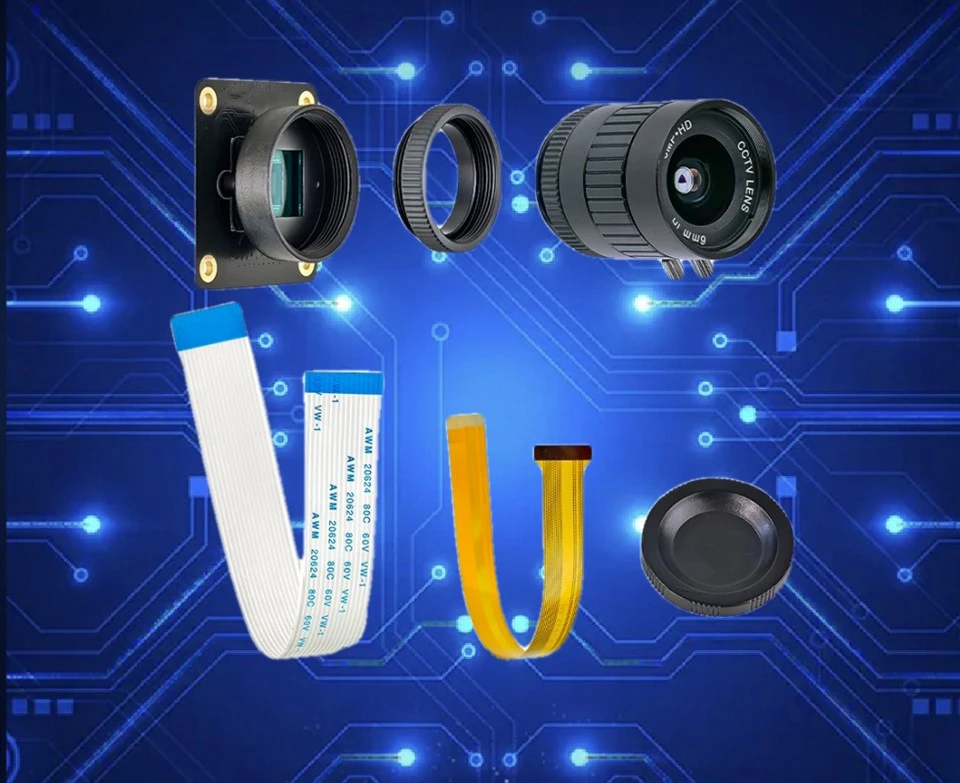

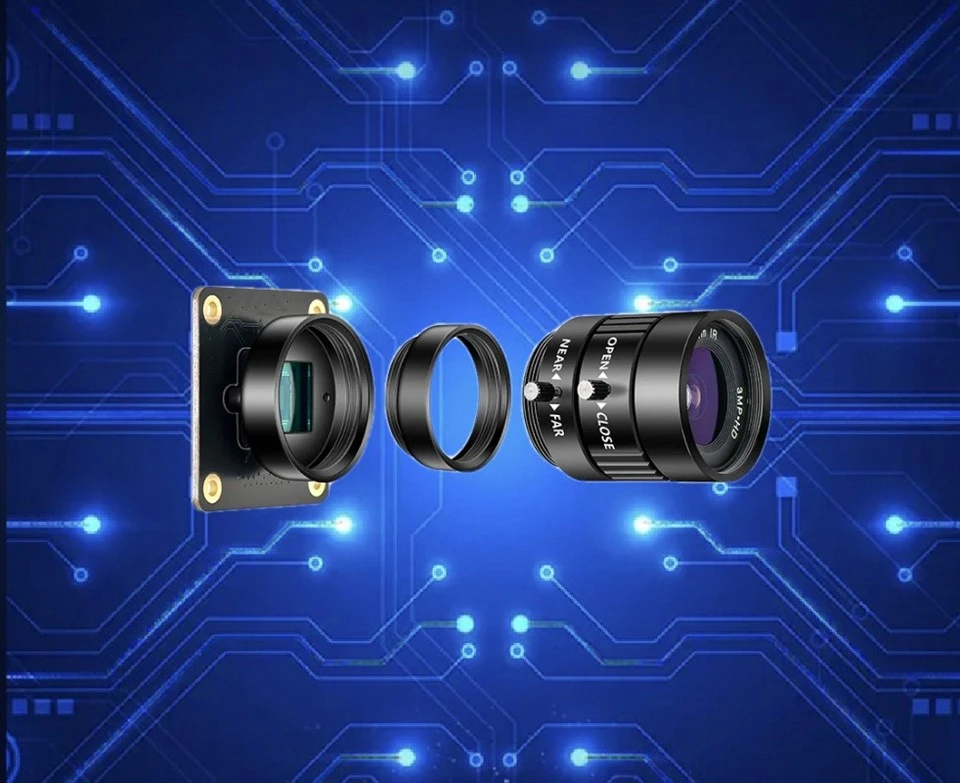

Raspberry Pi Global Shutter Camera 5/4B/3B+ 1080P IMX296 it is a global shutter camera module is compatible with Raspberry Pi series mainboards. Available in both color and black and white options. The IMX296 sensor has a resolution of 1.6 million pixels, with a pixel size of up to 3.45um * 3.45um. It can effectively complete tasks in extremely short exposure times, making it ideal for capturing high-speed moving objects and accurately reproducing real-time conditions. This camera module is compatible with both C and CS industrial lens interfaces. Additionally, it supports M12 interface lenses through a CS to M12 adapter ring, allowing users to pair it with various lenses to meet diverse global shooting requirements. Offer ODM and OEM services.

Raspberry Pi Global Shutter Camera 5/4B/3B+ 1080P IMX296 number of active pixels 1440(H) x 1080 (V) approx. 1.55M pixels

● Global shutter function.

● Pixel Size: 3.45 um x 3.45um.

● Optical Size of 1/2.9".

● Size: 38mm*38mm.

● High-speed motion capture; C/CS checkpoint.

● CDS /PGA Function: 0 dB to 24 dB: Analog Gain (0.1 dB step) 24.1 dB to 48 dB: Analog Gain: 24 dB + Digital Gain: 0.1 dB to 24 dB (0.1 dB step).

● I/O Interface: CSI-2 serial data output (1 Lane) RAW10 output.

● Recommended Lens F Number: 2.8 or more (Close side).

● Readout Rate: Maximum frame rate in . All-pixel scan mode: 10 bit: 60.3 frame/s.

● Output Formats: 10-bit RAW.

● Input Frequency: 37.125 MHz/74.25 MHz/54 MHz.

Raspberry Pi Global Shutter Camera 5/4B/3B+ 1080P IMX296 Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional.Supports OEM/ODM.
