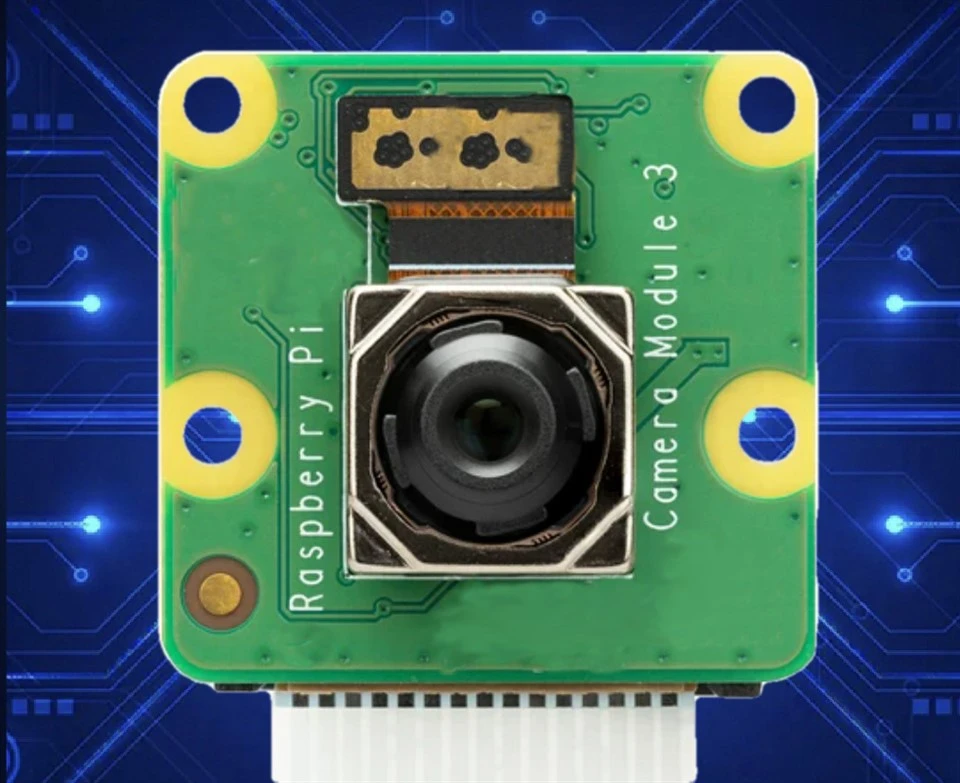

Raspberry Pi Camera V3 IMX708
The applicable motherboards are PI2B, PI3B, PI3B+, PI4B, and PI ZERO. A 22-pin to 15-pin adapter cable (purchased separately) is required.
Optical size of 1/2.43"
High Frame Rate 60fps @Full resolution(16:9) /60fps @1080p(QBC-HDR,16:9)/240fps@1080p(2x2 Adjacent Pixel Binning).
CSI-2 serial data output MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant.
Product Dimensions: 25x24 x 11.5 (mm)
Description
Technical Parameters
The Raspberry Pi Camera V3 IMX708 is an integrated camera module specifically designed for the Raspberry Pi series of motherboards. It has an effective pixel count of 11.94 million. It features an HDR mode, resulting in clear and realistic images with vivid colors. Additionally, it has an auto-focusing function. The 1.8 large aperture effectively controls noise in low-light conditions. Video resolutions supported include 1080p at 50 frames per second, 720p at 100 frames per second, and 480p at 120 frames per second. ODM and OEM services are provided.
Product Details
Raspberry Pi Camera V3 IMX708 number of active pixels 4608 (H) × 2592 (V) approx. 11.94 M pixels.
● Pixel Size: 1.4 um x 1.4um.
● The applicable motherboards are PI2B, PI3B, PI3B+, PI4B, and PI ZERO. A 22-pin to 15-pin adapter cable (purchased separately) is required.
● Optical size of 1/2.43".
● High Frame Rate 60fps @Full resolution(16:9) /60fps @1080p(QBC-HDR,16:9)/240fps@1080p(2x2 Adjacent Pixel Binning).
● CSI-2 serial data output MIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant.
● Product Dimensions: 25x24 x 11.5 (mm).
● Focus Range：10cm- infinity.
● Aperture: F1.8.
● Focal Length: 4.74MM.
● Diagonal Angle: 75 degrees.
● Horizontal Field Of View: 66 degrees.
● Vertical Field Of View: 41 degrees.
Raspberry Pi Camera V3 IMX708 Lens: Customizable for various scenarios.Autofocus/Fixed-focus optional.Supports OEM/ODM.
IMX708 And the following Functions and Features：
● Back-illuminated and stacked CMOS image sensor.
● Quad Bayer Coding(QBC) color filter arrangement.
● Phase Detection Auto Focus (PDAF).
● High Frame Rate 60fps @Full resolution(16:9)/60fps @1080p(QBC-HDR,16:9)/240fps@1080p(2x2 Adjacent
Pixel Binning).
● High signal to noise ratio(SNR).
● Dual sensor synchronization operation.
● Built-in 2D Dynamic Defect Pixel Correction(DPC).
● Lens Shading Correction (LSC).
● Built-in temperature sensor.
● Output video format of RAW10, RAW8, RAW14.
● QBC Re-mosaic function.
● QBC HDR function.
● Two PLLs for independent clock generation for pixel control and data output interface.
CSI-2 serial data outputMIPI D-PHY 2lane/4lane, Max. 2.5Gbps/lane, D-PHY spec. ver. 1.2 compliant2-wire serial communication (Supports 12C "Fast mode" and "Fast-mode Plus")8K bit of OTP ROM for users.
