Raspberry Pi Noir Camera V3 IMX708
Optical size of 1/2.43"
High Frame Rate 60fps @Full resolution(16:9) /60fps @1080p(QBC-HDR,16:9)/240fps@1080p(2x2 Adjacent Pixel Binning).
Product Dimensions: 25x24 x 11.6 (mm)
Focus Range: 10cm- infinity
Aperture: F1.88
Focal Length: 4.74MM
Description
Technical Parameters

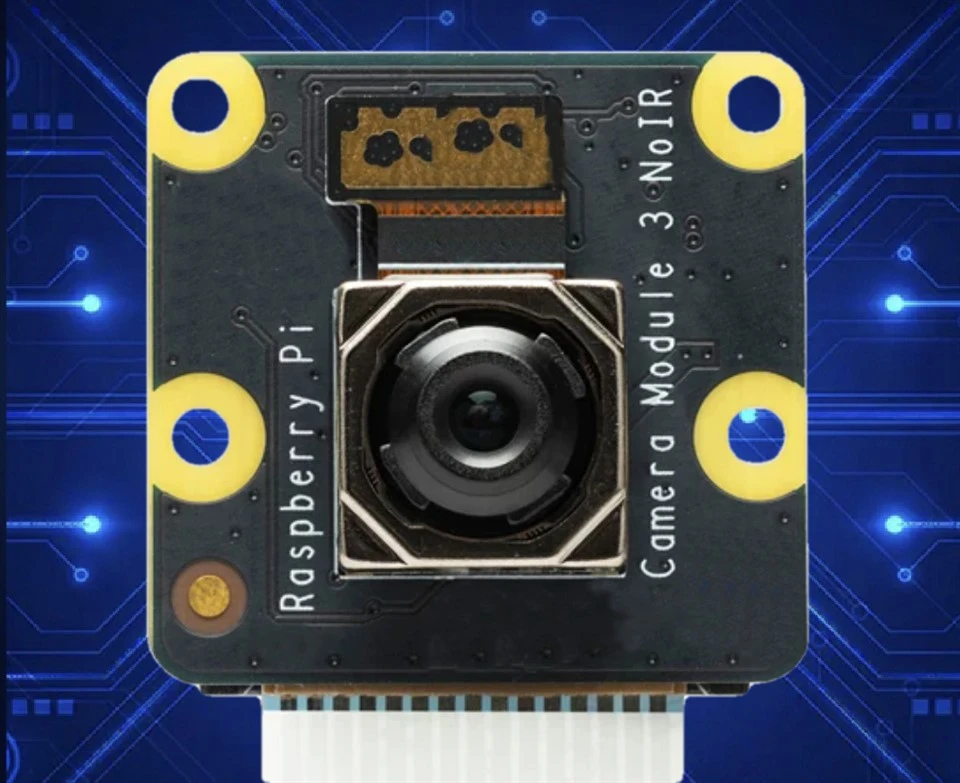

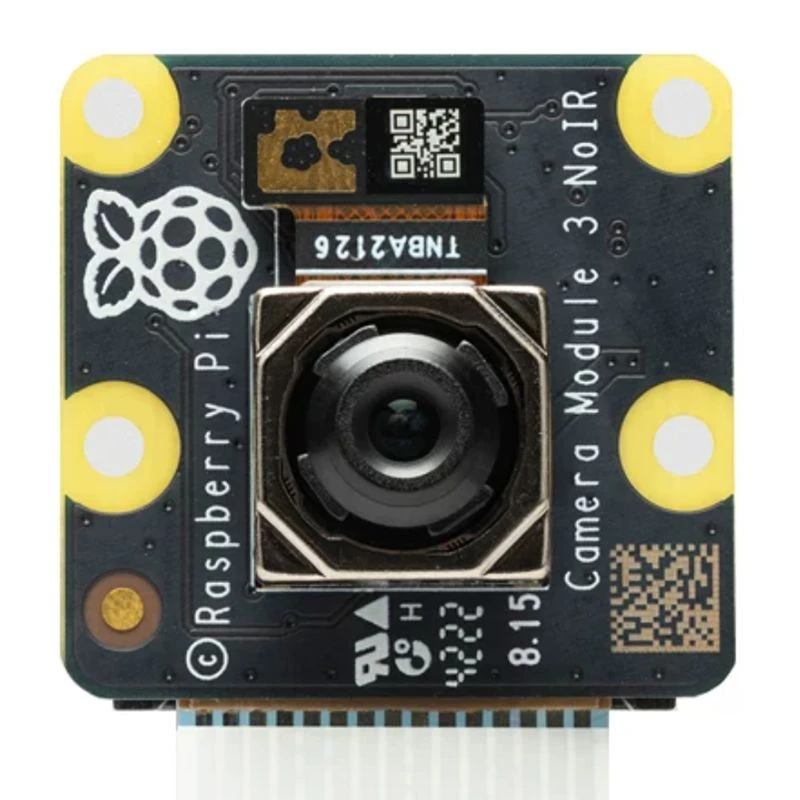

Raspberry Pi Noir Camera V3 IMX708 It is a night vision camera module designed for use on Raspberry Pi. It features a 11.94 million pixel sensor. It can be used for both daytime and nighttime shooting. However, due to the absence of an infrared filter on the lens, the color during daytime shooting will be slightly reddish. It can be used for infrared photography and for shooting in low light (dusk) conditions (requiring an infrared light source for assistance). Video resolutions supported include 1080p at 50 frames per second, 720p at 100 frames per second, and 480p at 120 frames per second.
Product Details
Raspberry Pi Noir Camera V3 IMX708 number of active pixels 4608 (H) × 2592 (V) approx. 11.94 M pixels.
● Pixel Size: 1.4 um x 1.4um.
● Optical size of 1/2.43".
● High Frame Rate 60fps @Full resolution(16:9) /60fps @1080p(QBC-HDR,16:9)/240fps@1080p(2x2 Adjacent Pixel Binning).
● Product Dimensions: 25x24 x 11.6 (mm).
● Focus Range: 10cm- infinity.
● Aperture: F1.88.
● Focal Length: 4.74MM.
● Diagonal: 76 degrees.
● Horizontal: 68 degrees.
● Vertical: 42 degrees.
Raspberry Pi Noir Camera V3 IMX708 Lens: Different lenses can be customized according to the application scenarios, such as the lenses that are used both during the day and at night, as well as the telephoto and wide-angle lenses.Supports OEM/ODM.
