Raspberry Pi Noir Camera V2 IMX219
Optical size of 1/4"
Aperture (F): 2.0
Exposure Time Peak: 11 seconds
Focal Length: 3.03mm
Horizontal Field Of View: 62 degrees
Vertical Field Of View: 48.5 degrees
Description
Technical Parameters

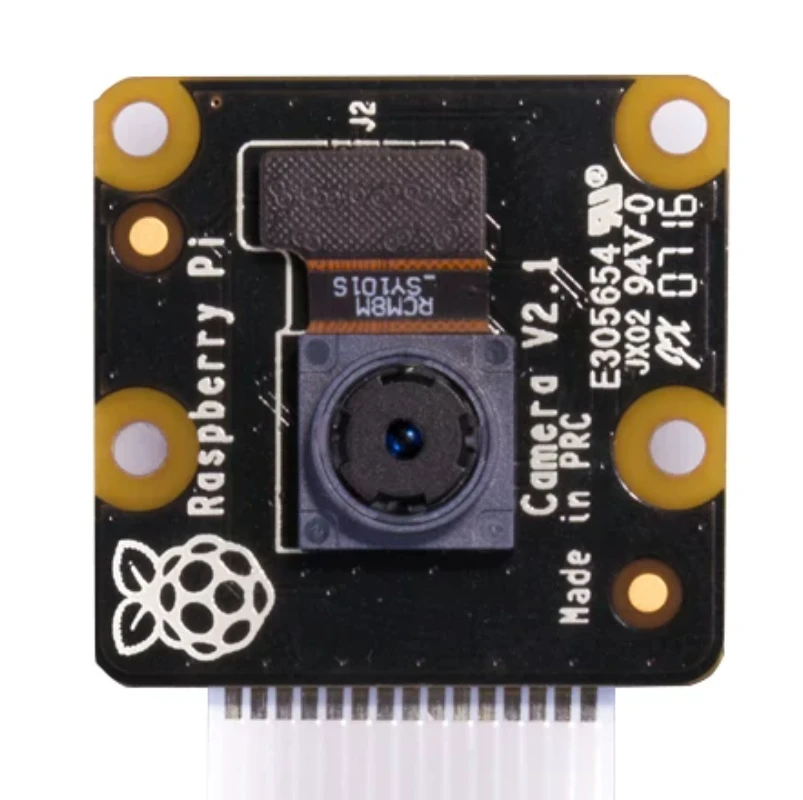

Raspberry Pi Noir Camera V2 IMX219 it is an 8-megapixel camera module specifically designed for Raspberry Pi development boards. It can be used for both daytime and nighttime shooting. However, due to the absence of an infrared filter on the lens, the color during daytime shooting appears slightly reddish. It can be used for infrared photography and shooting in low light (dusk) conditions (requires an infrared light supplement).Offer ODM and OEM services.
Product Details
Raspberry Pi Noir Camera V2 IMX219 number of active pixels 3280 (H) x 2464 (V) approx. 8 M pixels.
● Pixel Size: 1.12 um x 1.12um.
● Optical size of 1/4".
● Aperture (F): 2.0.
● Exposure Time Peak: 11 seconds.
● Focal Length: 3.03mm.
● Horizontal Field Of View: 62 degrees.
● Vertical Field Of View: 48.5 degrees.
● Product Dize: 25x23.9x8.9 (mm).
● Max. 30 frame/s in all-pixel scan mode.
● Pixel Rate: 280 [Mpixel/s](All-pixels mode).
● 180 frame/s @720p with 2x2 analog (special) binning, 60 frame/s @1080p with V-crop.
● Data Rate: Max. 754 Mbps/lane(@4lane), 911Mbps/Lane(@2lane).
Raspberry Pi Noir Camera V2 IMX219 Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional. Supports OEM/ODM.
