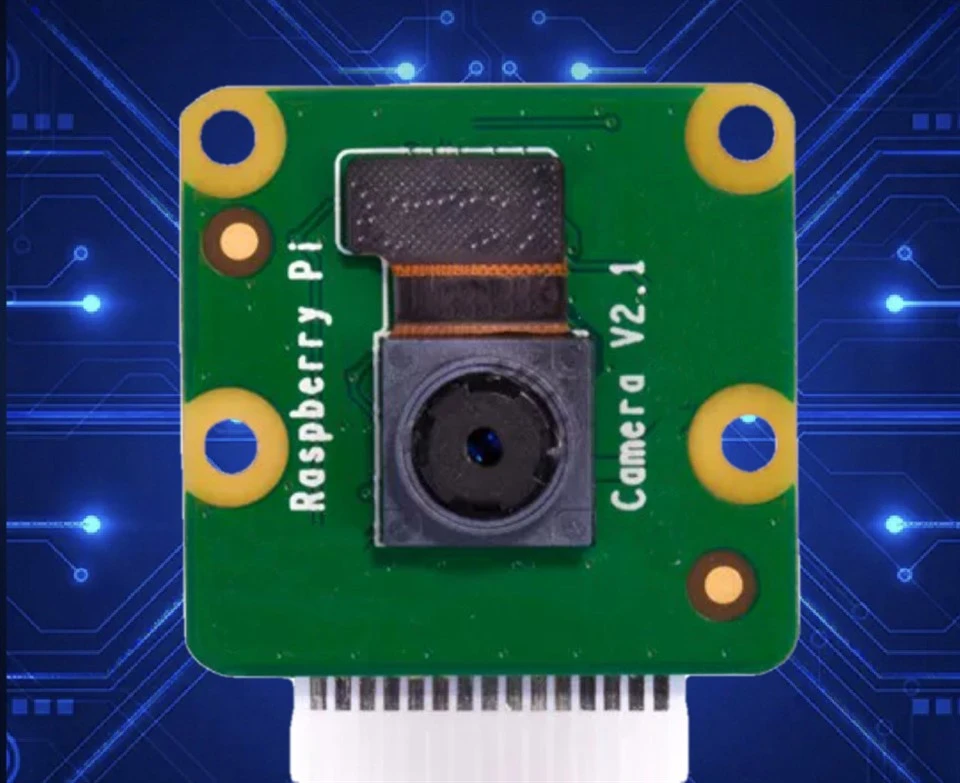

Raspberry Pi Camera V2 IMX219

Pixel Size: 1.12 um x 1.12um
Optical size of 1/4"
Aperture (F): 2.0
Exposure Time Peak: 10 seconds
Focal Length: 3.04mm
Horizontal Field Of Wiew: 62.5 degrees
Vertical Field Of Wiew: 49 degrees

Send Inquiry

Download

Description

Technical Parameters

Product Introduction

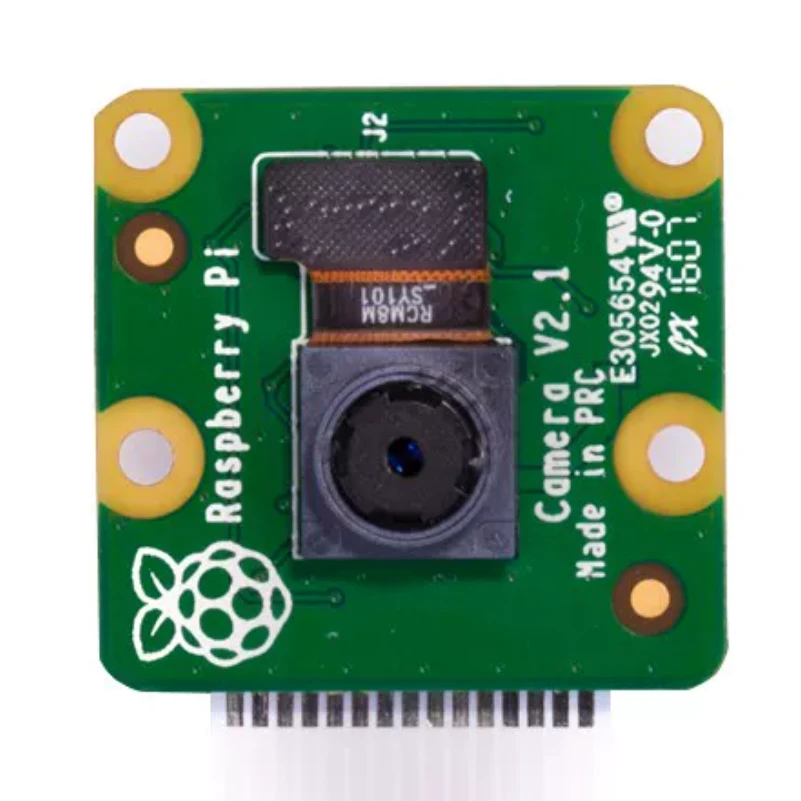

Raspberry Pi Camera V2 IMX219 it is an 8-megapixel camera module specifically designed for Raspberry Pi development boards. The IMX219 has pixels measuring 1.12 microns by 1.12 microns. The video supports resolutions of 1080p at 30 FPS, 720p at 60 FPS, and 640x480p at 60 FPS / 90 FPS. Applicable motherboards: PI2B, PI3B, PI3B+, PI4B; PIZERO requires a 22pinto 15pin adapter cable (to be purchased separately)Offer ODM and OEM services.

Product Details

Raspberry Pi Camera V2 IMX219 number of active pixels 3280 (H) x 2464 (V) approx. 8.08 M pixels.

● Pixel Size: 1.12 um x 1.12um.

● Optical Size of 1/4".

● Aperture (F): 2.0.

● Exposure Time Peak: 10 seconds.

● Focal Length: 3.04mm.

● Horizontal Field Of View: 62.5 degrees.

● Vertical Field Of View: 49 degrees.

● Product Size: 25x23.9x9 (mm).

● Max. 30 frame/s in all-pixel scan mode.

● Pixel Rate: 280 [Mpixel/s](All-pixels mode).

● 180 frame/s @720p with 2x2 analog (special) binning, 60 frame/s @1080p with V-crop.

● Data Rate: Max. 755 Mbps/lane(@4lane), 912Mbps/Lane(@2lane).

Raspberry Pi Camera V2 IMX219 Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional. Supports OEM/ODM.

● The IMX219 Sensor Also Features：

● Back-illuminated CMOS image sensor Exmor R2-wire serial communication circuit on chipCSI2 serial data output (selection of 4lane/2lane)Timing generator, H and V driver circuits on chip.

● CDS/PGAon chip.

● 10-bit A/D converter on chip.

● Automatic optical black (OB) clamp circuit on chip.

● PLL on chip (rectangular wave).

● High sensitivity, low dark current, no smear.

● Excellent anti-blooming characteristics.

● Variable-speed shutter function (1 H units.

● R, G, B primary color pigment mosaic filters on chipMax. 30 frame/s in all-pixel scan mode.
