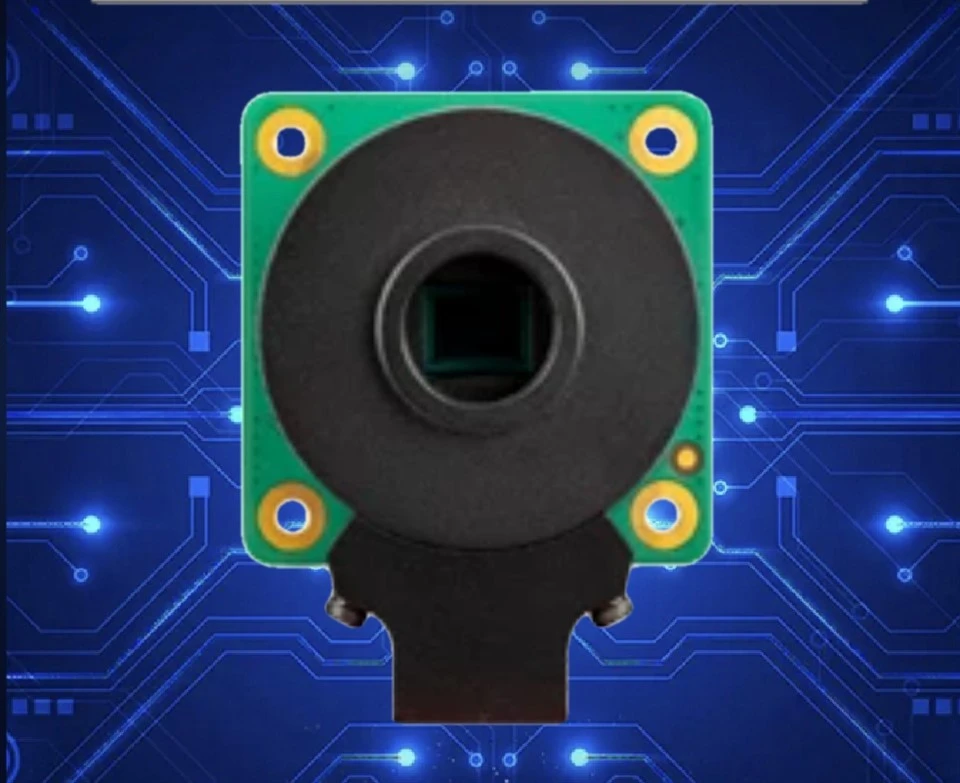

HQ Camera M12 Mount IMX477R

Product Introduction

HQ Camera M12 Mount IMX477R it is an 12.3-megapixel camera module specifically designed for Raspberry Pi development boards. It is a global shutter camera module. M12 is a universal standard that can be easily paired with various focal length lenses, allowing for seamless switching between wide-angle and telephoto modes. It has strong compatibility. New and old platforms can directly use it by plugging in the built-in cable. Besides Raspberry Pi, it can also be connected to Jetson series development boards. The community tutorials and code resources are very abundant.Offer ODM and OEM services.

HQ Camera M12 Mount IMX477R number of active pixels 4056 (H) × 3040 (V) approx. 12.33 M pixels.

● Pixel Size: 1.55 um x 1.55um.

● Optical size of 1/2.3".

● HQ Camera M12 Mount IMX477R Lens: Different lenses can be selected according to the application environment.Supports OEM/ODM.

● It can be paired with various lenses of M12, and can be freely combined.The applicable motherboards are PI2B, PI3B, PI3B+, PI4B, and PI ZERO 22-pin to 15-pin adapter cable (purchased separately) is required.

The GlobalShutterCamera, as its name suggests, is a global shutter camera module. Its working principle is to pair each pixel with an analog storage element, so that the light signal can be captured and stored simultaneously by all pixels.

The opposite of "global shutter" is "rolling shutter". The latter usually reads and stores the light captured by the pixels from top to bottom and from left to right. The former captures simultaneously, while the latter has a time difference, and thus the difference is most obvious when shooting sports or fast-moving objects. The rolling shutter causes diagonal tilting of fast-moving objects or very strange distortion phenomena.

Suitable for fast-moving shooting and industrial machine vision applications.
