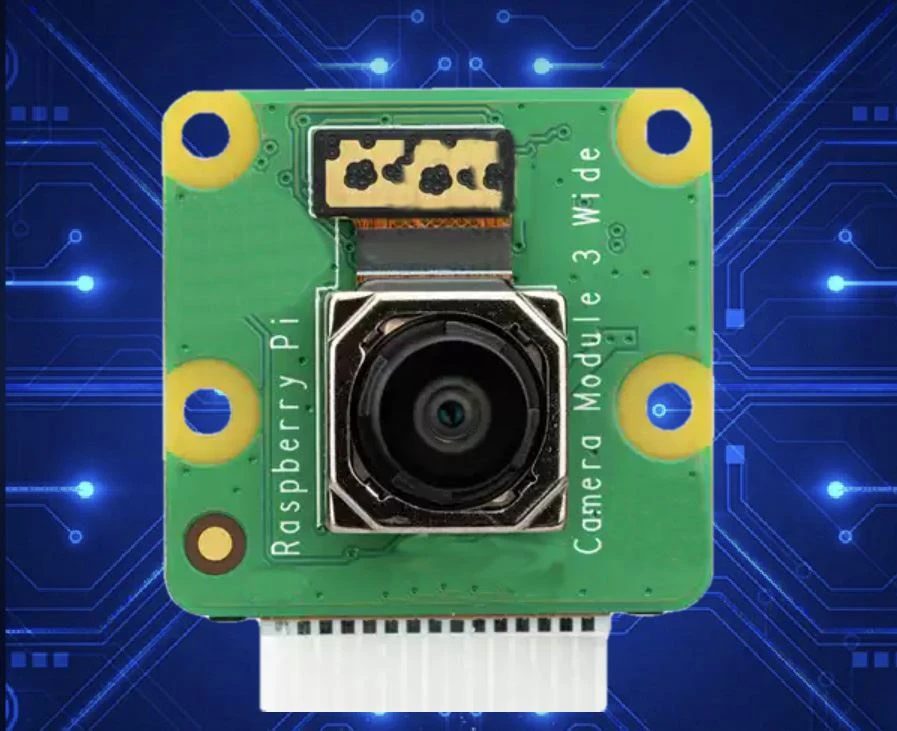

Raspberry Pi Wide Angle Camera V3 IMX708
Optical Format: 1/2.43"
Frame Rate: 60fps@full resolution; 60fps@1080p(QBC-HDR); 240fps@1080p(2×2 binning).
Interface: CSI-2 / MIPI D-PHY 2/4-lane, 2.5Gbps/lane, D-PHY v1.2.
Product Dimensions: 25x24 x 12.5 (mm)
Focus Range: 5cm- infinity
Aperture: F2.0
Description
Technical Parameters
Raspberry Pi Wide Angle Camera V3 IMX708 it is an 11.94-megapixel Wide Angle camera module specifically designed for Raspberry Pi development boards. With an angle of 120 degrees, you can capture the entire scene without having to step back. The sensor is 16:9 and can be recorded in 1080P without cropping, with a 100% field of view utilization. As an official module of Raspberry Pi, when combined with the latest libcamera and Picamera2 libraries, HDR and focus commands can be invoked with just one line of code, without the need to deal with third-party drivers, making it convenient and effortless. Offer ODM and OEM services.
Product Details
Raspberry Pi Wide Angle Camera V3 IMX708 number of active pixels 4608 (H) × 2592 (V) approx. 11.94 M pixels.
● Pixel Size: 1.4 um x 1.4um.
● Optical Format: 1/2.43".
● Frame Rate: 60fps@full resolution; 60fps@1080p(QBC-HDR); 240fps@1080p(2×2 binning).
● Interface: CSI-2 / MIPI D-PHY 2/4-lane, 2.5Gbps/lane, D-PHY v1.2.
● Product Dimensions: 25x24 x 12.5 (mm).
● Focus Range: 5cm- infinity.
● Aperture: F2.0.
● Focal Length: 2.75MM.
● View Angle: Diagonal 120°, Horizontal 102°, Vertical 67°.
● You can choose either a fixed-focus or an autofocus camera module.
● Video supports 1080p at 50 FPS, 720p at 100 FPS, and 480p at 120 FPS.
● Compatibility: Pi 2B/3B/3B+/4B/Zero (22-to-15-pin adapter separate).
Raspberry Pi Wide Angle Camera V3 IMX708 Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional.Supports OEM/ODM.
