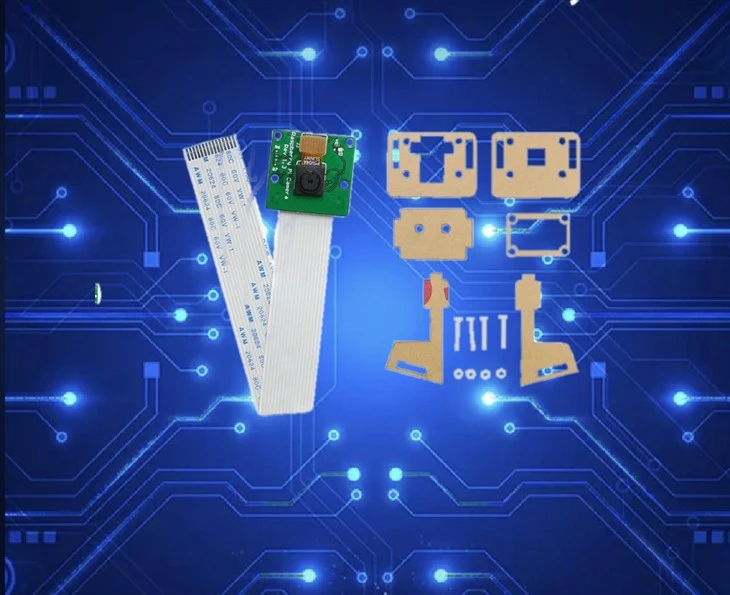

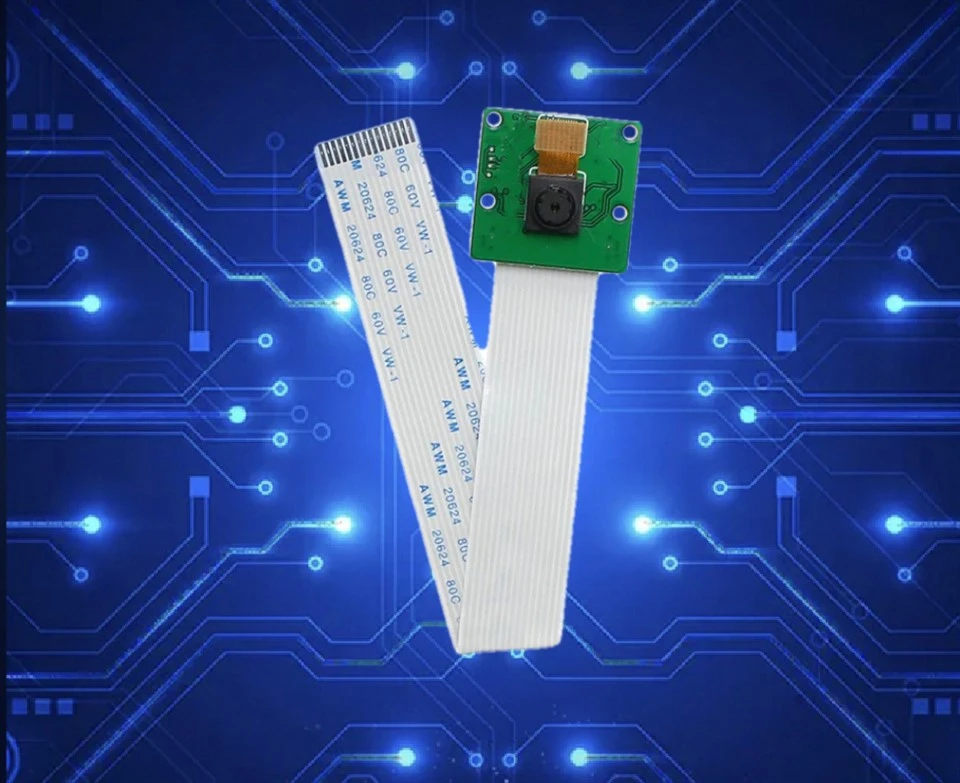

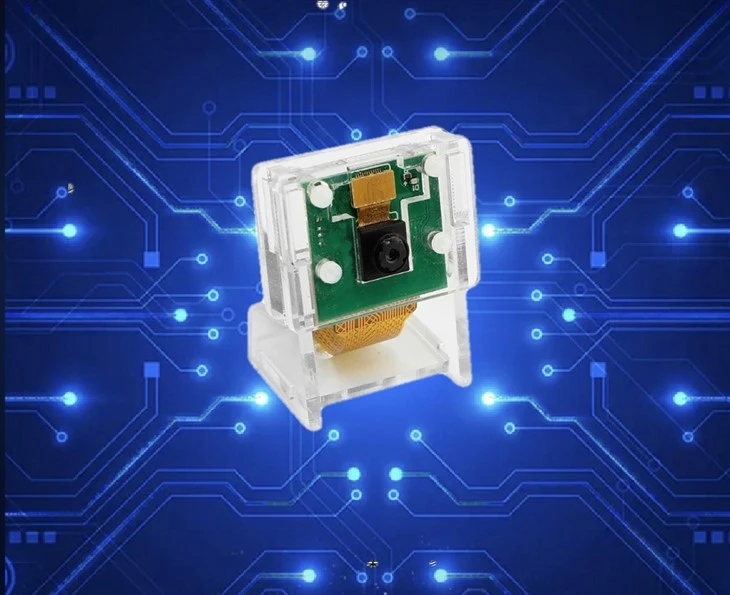

Raspberry Pi 4 Camera Module 4B/3B/3B+ OV5647
Optical Size of 1/4"
Aperture (F): 2.4
Output Signal: YCBCR4: 2:2, RGB565,RAWRGB
Power Requirements: active:96 mA standby: 20 uA
Temperature range: operating: -30°C to 70°C junction temperature.
Stable Image: 0°C to 50°C junction temperature
Description
Technical Parameters
Raspberry Pi 4 Camera Module 4B/3B/3B+ OV5647 it is a 5-megapixel camera module specifically designed for Raspberry Pi development boards,Supports all development boards of Raspberry Pi. Just plug it in and it can be used. The development barrier is extremely low. For making the first Raspberry Pi camera, home surveillance or 3D printer time-lapse photography, it is the most cost-effective choice.Offer ODM and OEM services.
Product Details
Raspberry Pi 4 Camera Module 4B/3B/3B+ OV5647 number of active pixels 2592(H) x 1944 (V) approx. 5 M pixels.
● Pixel Size: 1.4 um x 1.4um.
●Optical Size of 1/4".
●Aperture (F): 2.4.
●Output Signal: YCBCR4: 2:2, RGB565,RAWRGB.
●Power Requirements: active:96 mA standby: 20 uA.
●Temperature range: operating: -30°C to 70°C junction temperature.
●Stable Image: 0°C to 50°C junction temperature.
Raspberry Pi 4 Camera Module 4B/3B/3B+ OV5647 Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional.Supports OEM/ODM.
The compatible motherboards include PI2B, PI3B, PI3B+, PI4B and PI ZERO. automatic image control functions: automaticexposure control (AEC), automatic gain control(AGC), automatic white balance (AWB), automaticband filter (ABF), automatic 50/60 Hz luminancedetection, and automatic black level calibration(ABLC).
OV5647 sensor features.
1.4 um x 1.4 um pixel with OmniBSI technology forhigh performance (high sensitivity, low crosstalk, lownoise).
Programmable controls for frame rate, AEC/AGC16-zone size/position/weight control, mirror and flip,cropping, windowing, and panning.
● Image quality controls: lens correction, defectivepixel canceling.
● Support for output formats: 8-/10-bit raw RGB data.
● Support for video or snapshot operations.
● Support for LED and flash strobe mode.
● Support for internal and external framesynchronization for frame exposure mode.
● Support for horizontal and vertical sub-sampling.
● Standard serial SCCB interfaceMIPl interface (two lanes)32 bytes of embedded one-time programmable(OTP) memory.
● On-chip phase lock loop (PLL).
● Embedded 1.5V regulator for core power.
● Programmable l/O drive capability, l/O tri-stateconfigurability.
● Support for black sun cancellation.
