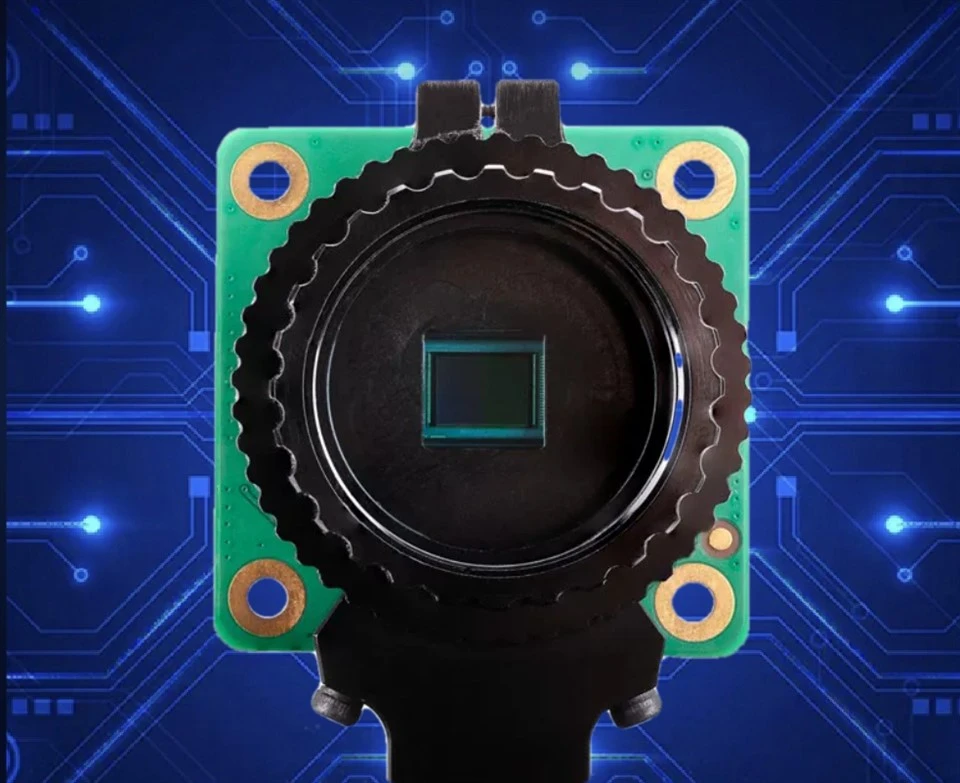

HQ Camera CS Mount IMX477R

Product Introduction

HQ Camera CS Mount IMX477R It is a global shutter camera module. It uses a 12.3 M pixel sensor. It can be used with various lenses of 12.5 mm and 22.4 mm, and can be freely combined. The applicable motherboards include PI2B, PI3B, PI3B+, PI4B and PI ZERO 22-pin to 15-pin adapter cable (which needs to be purchased separately) is necessary. ODM and OEM services are provided.



HQ Camera CS Mount IMX477R number of active pixels 4056 (H) × 3040 (V) approx. 12.33 M pixels.

● Pixel Size: 1.55 um x 1.55um.

● Optical size of 1/2.3".

● The IMX477 Chip Supports：

● Digital Overlap High dynamic range (DOL-HDR) mode with raw data output.

● High signal to noise ratio (SNR).

● Full resolution @60fps(Normal), 4K2K @60fps(Normal), 1080p @240fps.

● Full resolution @40fps(12bit Normal), Full resolution @30fps(DOL-HDR, 2frame).

● Output video format of RAW12/10/8, COMP8.

● Input clock frequency 6 to 27 MHz.

● CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.1Gbps/ane, D-PHY spec. ver. 1.2 complia.

HQ Camera CS Mount IMX477R Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional.Supports OEM/ODM.

● The IMX477 also has the following features.

● Pixel binning readout and V sub-sampling function.

● Independent flipping and mirroring.

● Two PLLs for independent clock generation for pixel control and data output interface.

● Ambient Light Sensor (ALS).

● Fast mode transition. (on the fly).

● Dual sensor synchronization operation.

● 7K bit of OTP ROM for users.

● Built-in temperature sensor.

● 10-bit/12-bit A/D conversion on chip.

● 92-pin high-precision ceramic package.

IMX47 is a diagonal 7.857mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked image sensorwith a square pixel array. It adopts Exmor RSTM technology to achieve high speed image capturing by columnparallel AD converter circuits and high sensitivity and low noise image (comparing with conventional CMOS imagesensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter isemployed. It equips an electronic shutter with variable integration time. It operates with three power supply voltages:analog 2.8 V (TENTATIVE), digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption.
