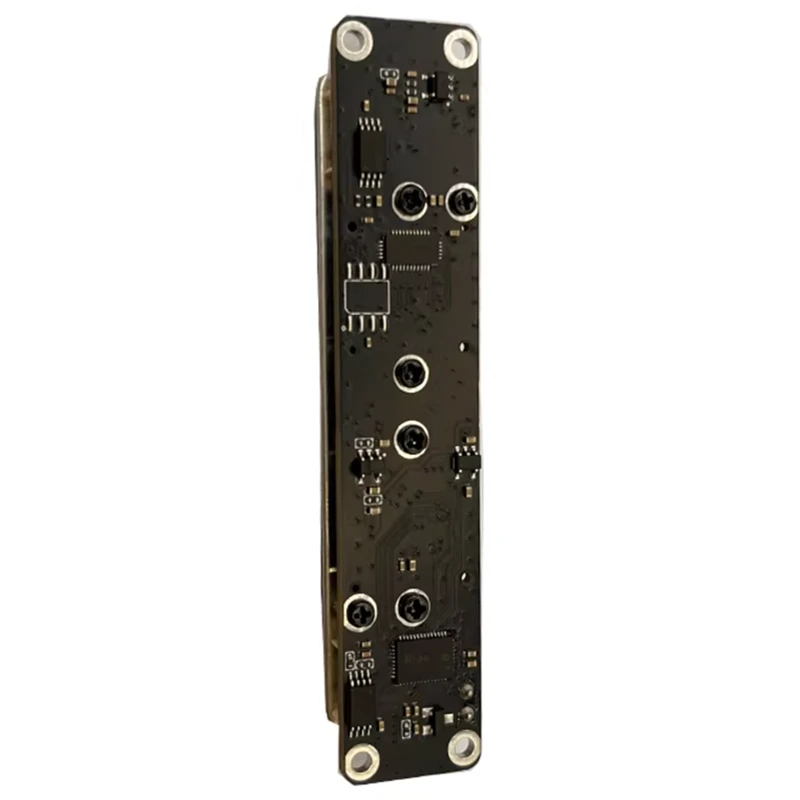

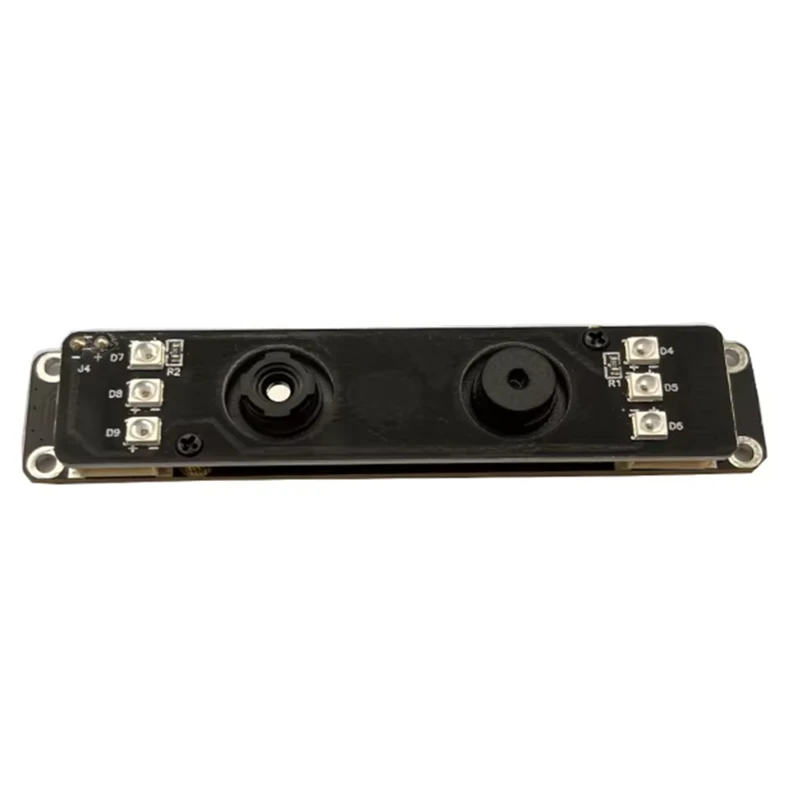

Stereo Camera Module 2MP WDR

Product Introduction

The Stereo Camera Module 2MP WDR is a 2-megapixel high-definition dual-lens camera module with wide dynamic range (WDR), suitable for high-precision face recognition and machine vision applications. It can stably output clear images even in complex lighting conditions such as high contrast and direct sunlight. OEM/ODM cooperation is supported.

The Stereo Camera Module 2MP WDR features a 1/2.7-inch CMOS sensor, supporting 1920×1080 resolution at 30fps output and adapting to complex lighting conditions. By utilizing binocular vision to capture depth information, it enhances the accuracy of live object detection and identity recognition while effectively resisting attacks on photos and videos. Native compatibility includes Windows, Android, Linux, Windows CE, and Mac OS. Ideal for high-security and precision applications such as smart payment terminals, unmanned retail cabinets, smart storage lockers, access gates, and attendance systems, the module's specifications are as follows:

Camera Module Key Parameters
Module Size	80*16mm
Sensor	1/2.7-Inch CMOS Sensor
Resolution	1920 Hx 1080 V
Pixel Size	3.0*3.0um
Dynamic Range	85dB
Output Format	MJPEG,YUV2
FOV	DFOV:76°
Lens	FEL:4.35mm F/NO:2.0
Scanning Speed	0.1S
Focus Type	FF/MF
Shutter Type	Electronic Rolling shutter
Output And Power Supply	High Speed USB2.0
Interface	5 PIN 1.25MM Socket
Controllable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS	Windows, Android, Linux, Wince, Mac OS
MIC	NC
Minimum Illumination	0.01Lux@(F1.2,AGC ON)
Operating Voltage	USB DC +5V Supply
Operating Current	160mA
Operating Temperature	-20°C~60°C
Storage Temperature	-20°C~85°C
