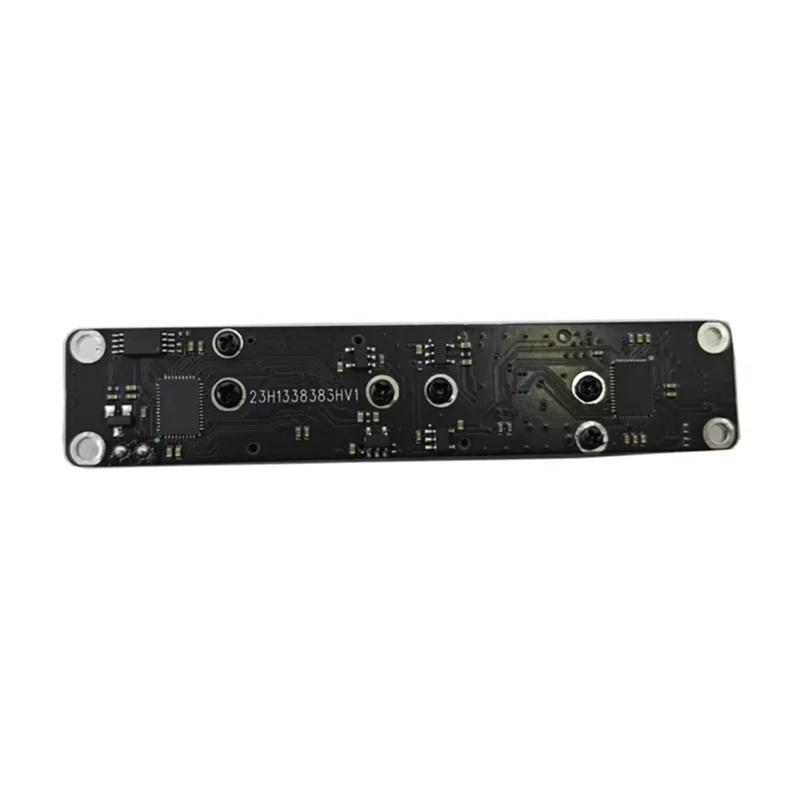

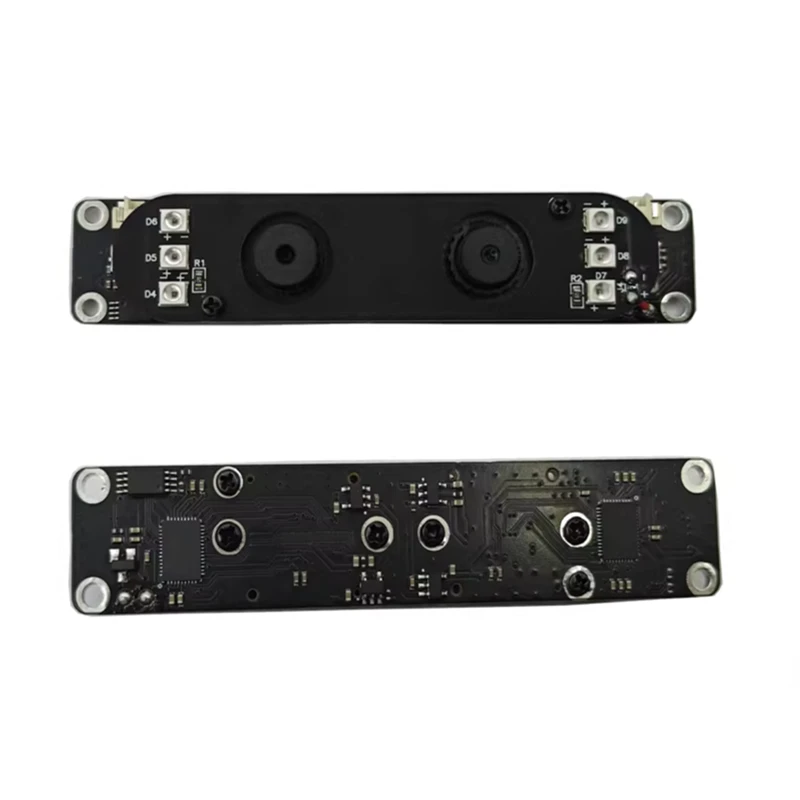

Product Introduction Stereo Camera Module 2MP is a highly cost-effective facial recognition binocular camera module. It integrates a 2-megapixel sensor to meet the clarity requirements for both medium-distance and close-range facial recognition. By calculating disparity to obtain depth information, it enables live body detection and distance perception, effectively defending against photo/video attacks. It uses a standard USB interface and can be equipped with either a horizontal or vertical camera. It supports OEM and ODM.
Product Details
Stereo Camera Module 2MP uses a 1/3.0 CMOS Sensor with a resolution of 1920H x 1080V at 30FPS. The pixel size is 2.7um x 2.7um and it can operate in various environments. The Stereo Camera Module 2MP also supports the following systems: Windows, Android, Linux, Wince, and Mac OS. The product parameters are as follows:
Camera Module Key Parameters
|
Camera Module Key Parameters |
|
|
Module Size |
80mm*16mm |
|
Sensor |
1/3-Inch CMOS Sensor |
|
Resolution |
1920 Hx 1080 V |
|
Pixel Size |
2.7*2.7um |
| Cable Length | TBD |
|
Output Format |
MJPEG,YUV2 |
|
FOV |
DFOV:76° |
|
Lens |
FEL:4.32mm F/NO:2.0 |
|
Scanning Speed |
0.1S |
|
Focus Type |
FF/MF |
|
Shutter Type |
Electronic Rolling shutter |
|
Output And Power Supply |
High Speed USB2.0 |
|
Interface |
USB2.0 |
|
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
MIC |
NC |
|
Minimum Illumination |
0.1Lux |
|
Operating Voltage |
USB DC +5V Supply |
|
Operating Current |
151mA |
|
Operating Temperature |
-20°C~60°C |
|
Storage Temperature |
-20°C~84°C |
