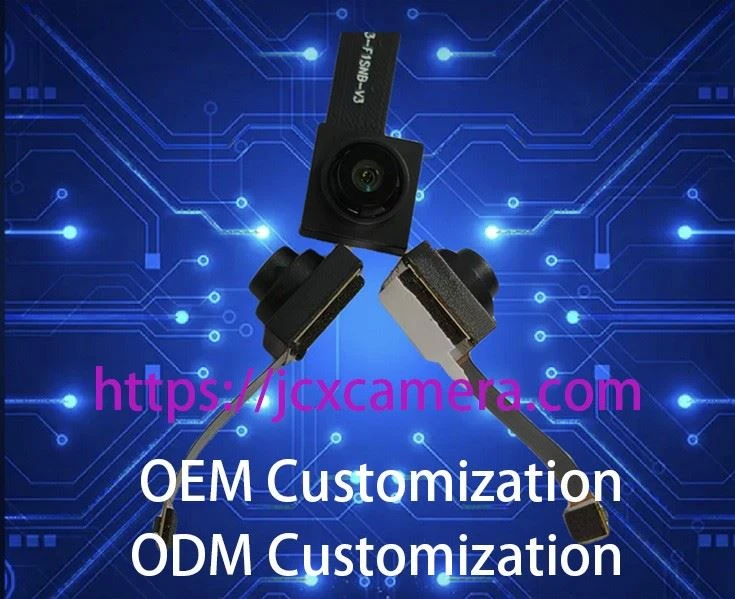

GC2053 2MP MIPI Fixed Focus Camera Module
Pixel Size; 2.8um*2.8um
Active Pixel Array; 19920x1080
Output Formats; Raw 10bit/8bit
Frame Rate; 30fps @full size 1920x 1080
DVP /MIPI (2lane ) interface support
Operation Temperature; -20~80°C
Description
Technical Parameters
GC2053 2MP MIPI Fixed Focus Camera Module is a high quality 1080P CMOS image sensor, The large pixel size (2.8μm) combined with on-chip ISP processing can output excellent image quality even in poor lighting conditions. It supports AEC (Auto Exposure Control), AWB (Auto White Balance), and AGC (Auto Gain Control). The main control can obtain YUV or RAW data simply by configuring through I²C.
Product Details
GC2053 2MP MIPI Fixed Focus Camera Module is suitable for a low-power camera module with a 2.8 V/1.8 V/1.2 V power supply.
● Optical Format: 1/2.9inch.
● Pixel Size: 2.8um*2.8um.
● Active Pixel Array: 19920x1080.
● Output Formats: Raw 10bit/8bit.
● Frame Rate: 30fps @full size 1920x 1080.
● DVP /MIPI (2lane ) interface support.
● Operation Temperature: -20~80°C.
● GC2053 2MP MIPI Fixed Focus Camera Module support.
Lens: Customizable for various scenarios. Autofocus/Fixed-focus optional. Supports OEM/ODM.
For security cameraproducts, digital camera products and mobile phone camera applications. GC2053incorporates a 1920H x 1080V pixel array, on-chip 10-bit ADC, and image signalprocessor.It provides RAW10 and RAW8 data formats with MIPI and DVP interface.
