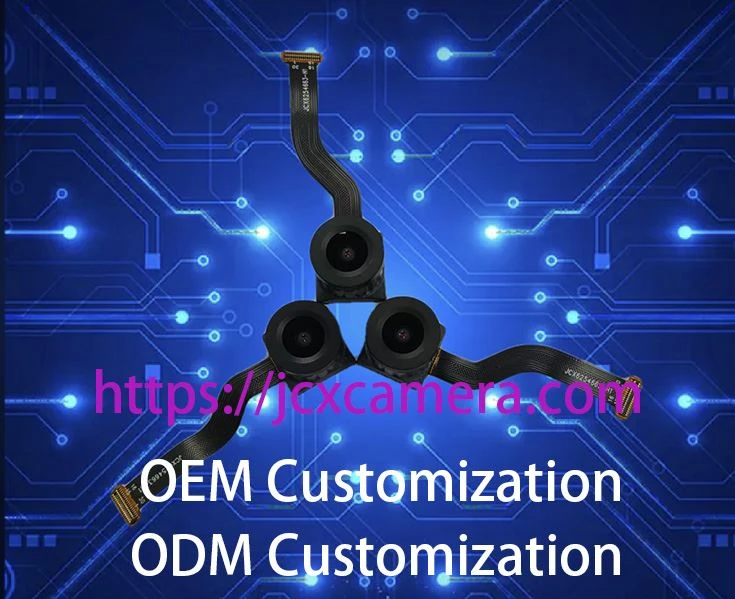

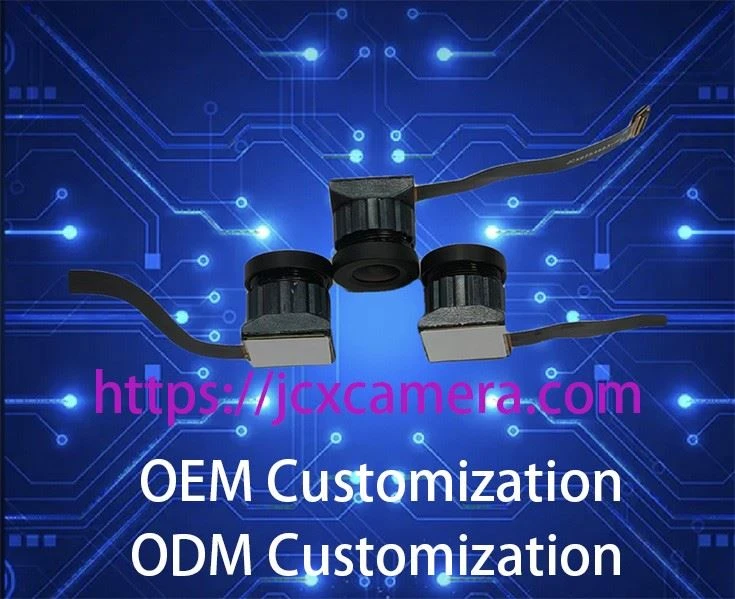

GC4653 4MP MIPI Fixed Focus Camera Module
2.0um x 2.0um BSI pixel
Output Formats; Raw Bayer 12bit/10bit
Support for frame sync
MIPI(2_lane) interface support
Operating Temperature; -20~83°C
Stable Image Temperature; 0-60°C
Description
Technical Parameters
GC4653 4MP MIPI Fixed Focus Camera Module is a high quality 4Mega CMOS image sensor, for security cameraproducts, digital camera products and mobile phone camera applications. Adopting a 2.0μm BSI back-illuminated process, it has a stronger light-sensing ability in low-light environments and produces fewer image noise at low illuminance. It also features a wide dynamic range, allowing for clear photos to be taken in backlit conditions.
Product Details
GC4653 4MP MIPI Fixed Focus Camera Module is suitable for a low-power camera module with a 2.8 V/1.8 V/1.2 V power supply.
● Standard optical format of 1/3 inch.
● 2.0um x 2.0um BSI pixel.
● Output Formats: Raw Bayer 12bit/10bit.
● Support for frame sync.
● MIPI(2_lane) interface support.
● Operating Temperature: -20~83°C.
● Stable Image Temperature;0-60°C.
● Max Frame Rate: 30fps@full size (2560 x 1440).
● Shutter Type: Electronic rolling shutter.
● Application: Surveillance Cameras, Smart Home Systems loT Cameras, Car Driving Recordes, Video telephony and conferencing equipment.
● GC4653 4MP MIPI Fixed Focus Camera Module support.
Lens: Customizable for various scenarios.Autofocus/Fixed-focus optional. Supports OEM/ODM.
Thefull-scale integration of high-performance makes the fit the designand reduce the implementation process.incorporates a 2560H x 1440V pixel array, on-chip 12/10-bit ADC.and image signal processor. It provides RAW12 and RAW10 data format withMIPI interface.
